V-Belts

Description

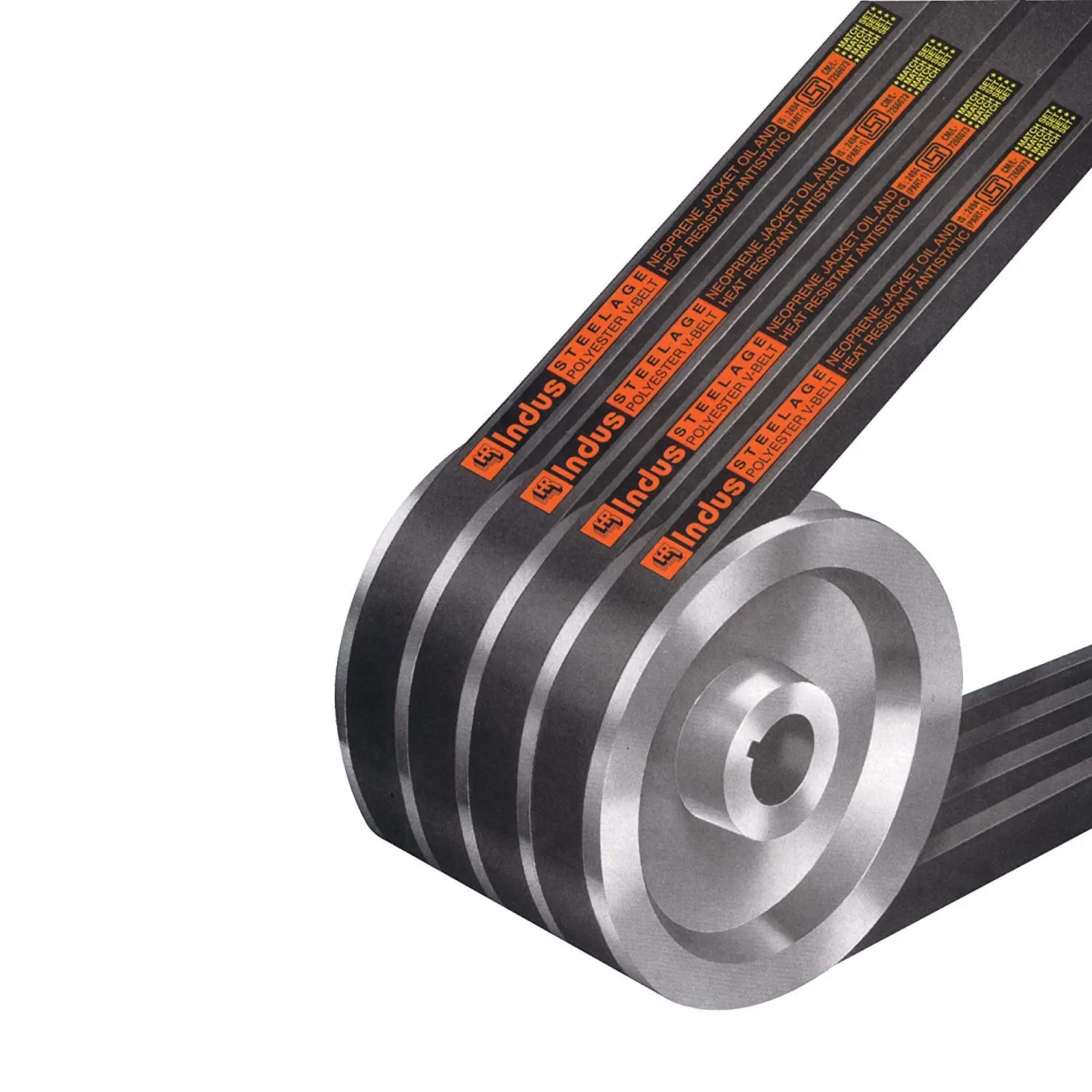

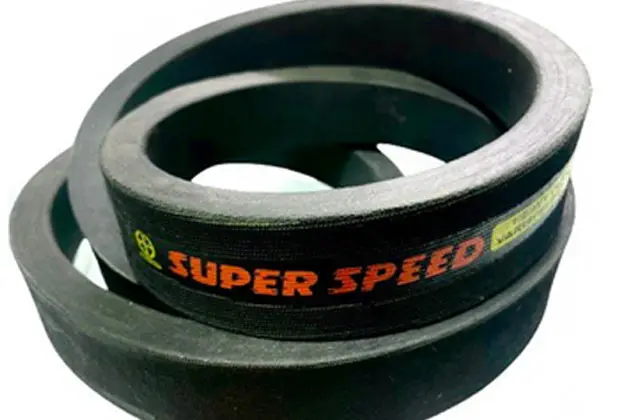

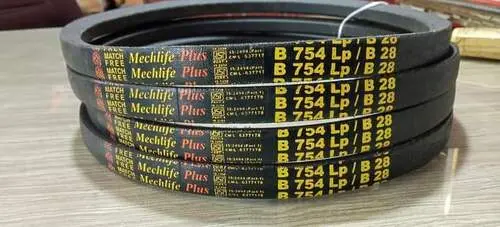

V-Belts are essential components in mechanical power transmission systems, offering an efficient and cost-effective solution for transferring rotational motion between pulleys. Characterized by their trapezoidal cross-section, V-Belts wedge into pulley grooves to reduce slippage and improve torque transmission. Widely used in both industrial and agricultural equipment, these belts are known for their high load capacity, smooth operation, and long service life. Whether you're operating compressors, pumps, or heavy-duty machinery, V-Belts provide reliable performance under various environmental conditions. Available in multiple sections (A, B, C, D, E), profiles (Classical, Wedge, Narrow), and lengths, we supply V-Belts for all standard pulley systems, backed by the most trusted brands in the industry.

Specifications

• Belt Types: Classical (A, B, C, D, E) / Narrow (SPZ, SPA, SPB, SPC) / Wedge / Hexagonal
• Material: High-strength rubber compound reinforced with polyester/aramid cords
• Temperature Range: -30°C to +80°C
• Resistant To: Oil, heat, and abrasion
• Belt Lengths: Available in standard and custom sizes
• Top Width: Varies by section (e.g., A: 13mm, B: 17mm)
• Applications: Static and dynamic power transmission
• Complies With: IS / ISO / DIN / BS / RMA standards
• Speed Range: Up to 30 m/s depending on application
• Noise Level: Low noise and vibration

Applications

• Industrial conveyors and compressors
• Agricultural equipment and threshers
• Air conditioning and HVAC units
• Water pumps and generators
• Textile and printing machinery
• Mining and quarry belt-driven systems
• Fans, blowers, and mixers
• Machine tools and lathes
